EFSC Lab Varian GC/MS April 2017

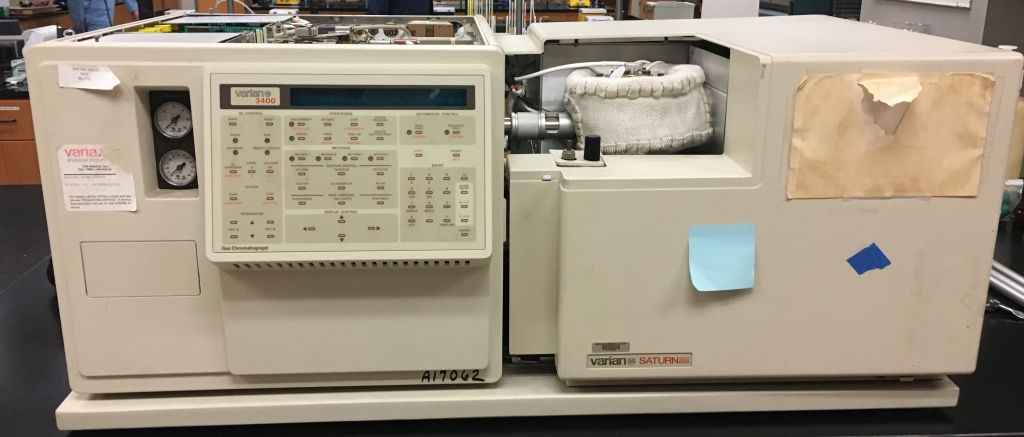

IMG_3110a - Lab Varian Saturn GC/MS Complete System

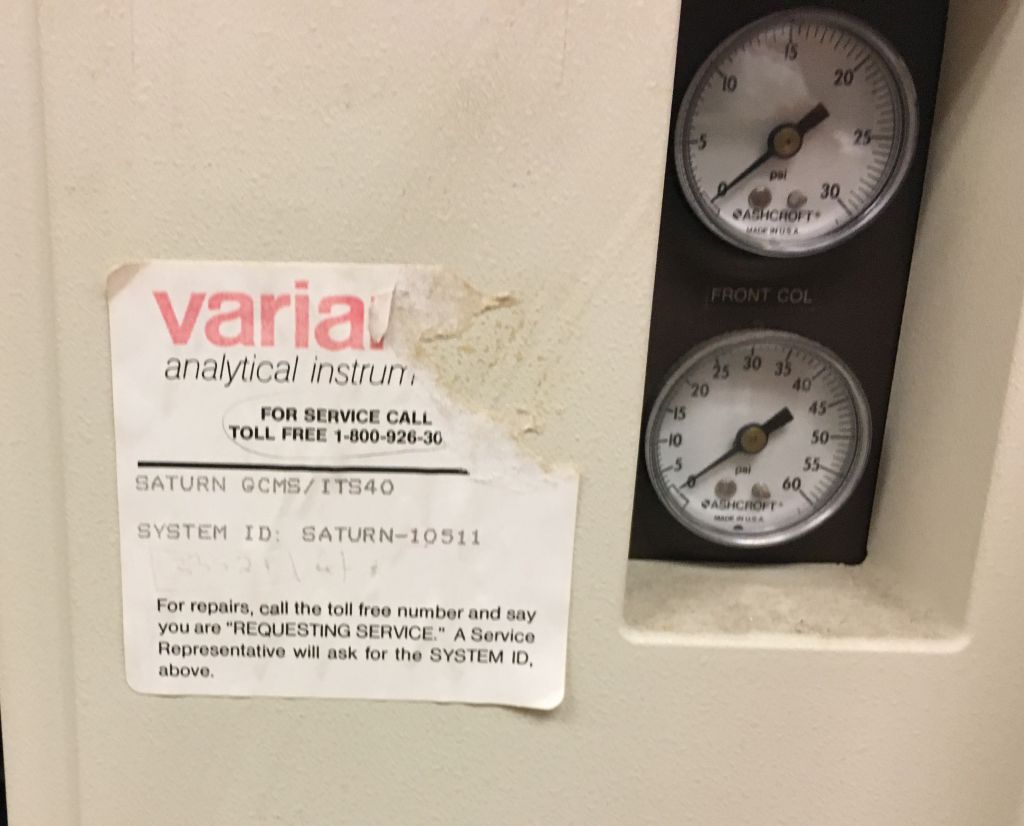

IMG_3111a- Lab Varian Saturn GC/MS – ID Tag

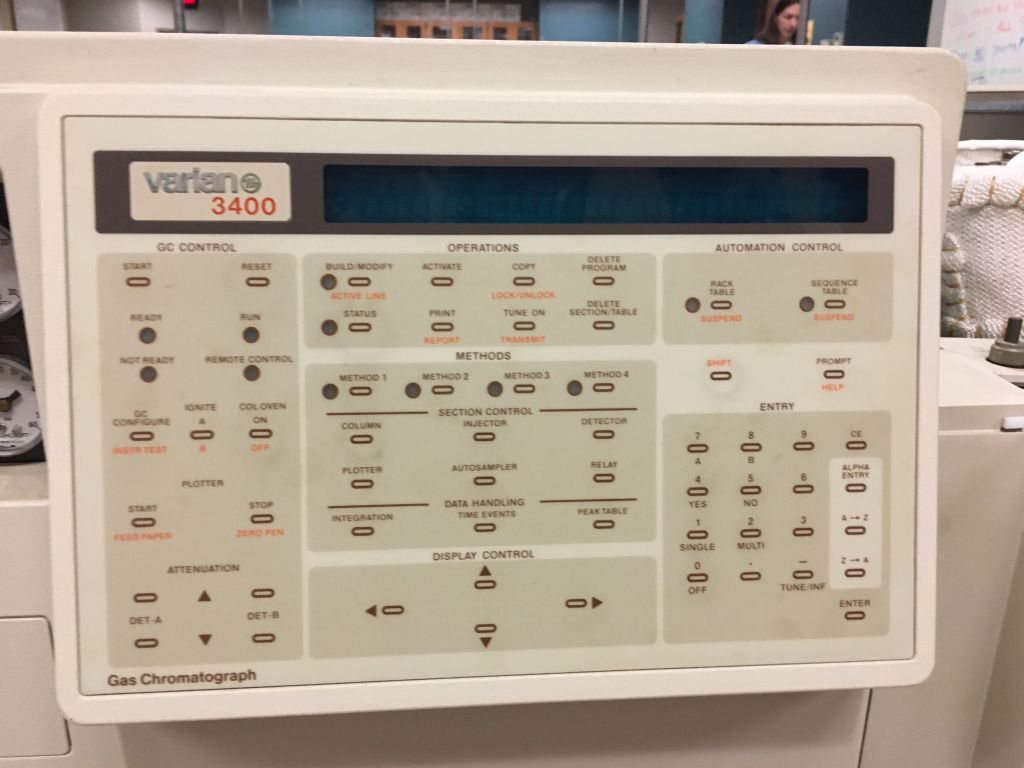

IMG_3112a - Lab Varian Saturn GC/MS – Varian 3400 Console

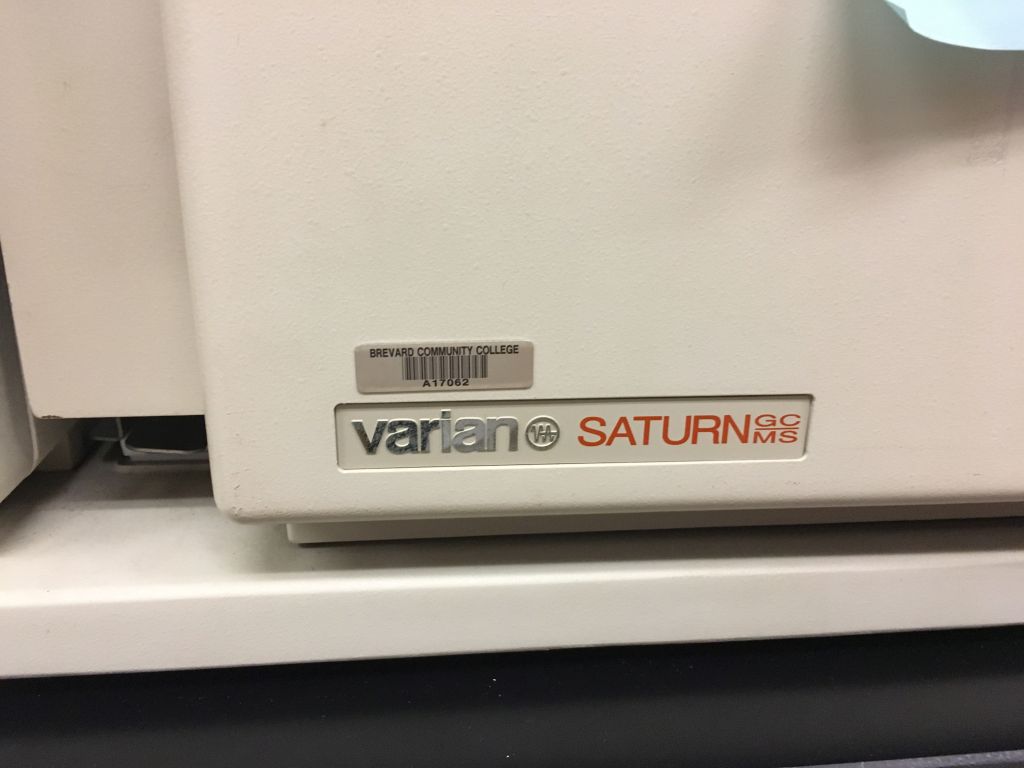

IMG_3113a - Lab Varian Saturn GC/MS

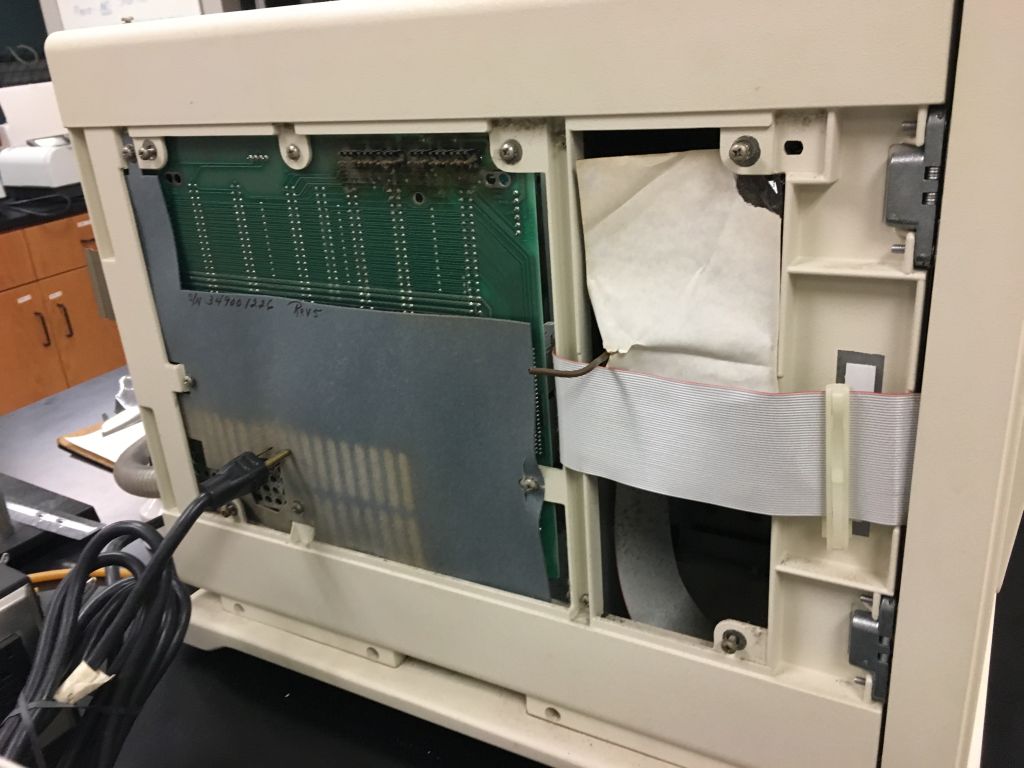

IMG_3114a - Lab Varian Saturn GC/MS, Left side of GC

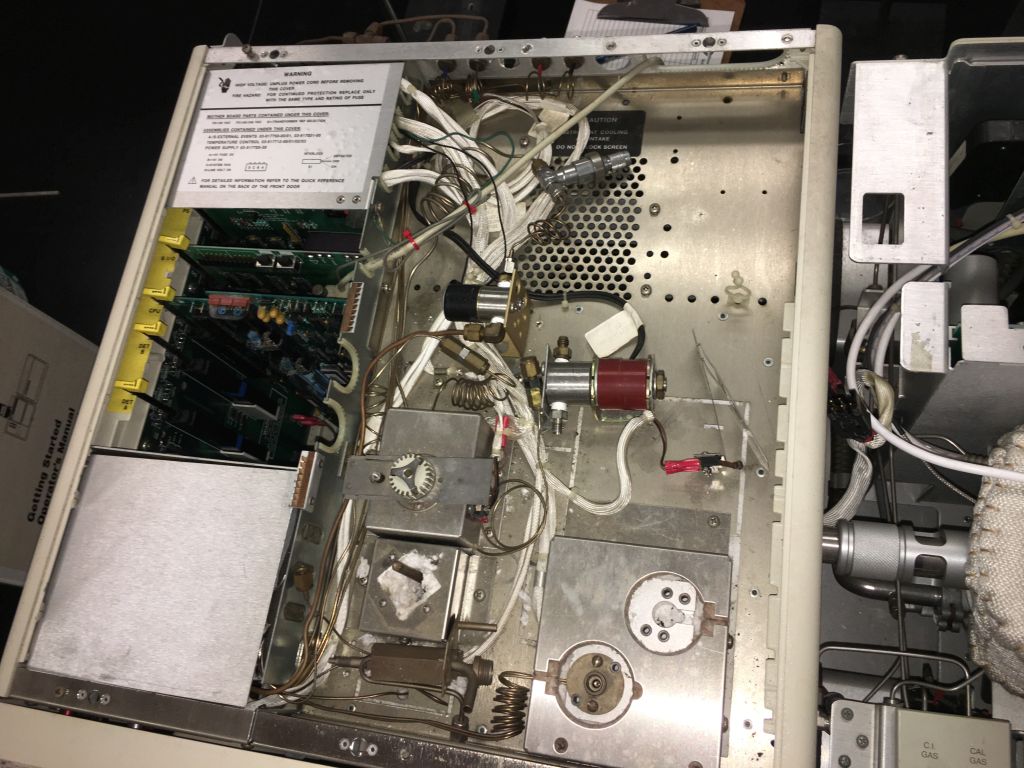

IMG_3138a - Lab Varian Saturn GC/MS, GC Top looking down

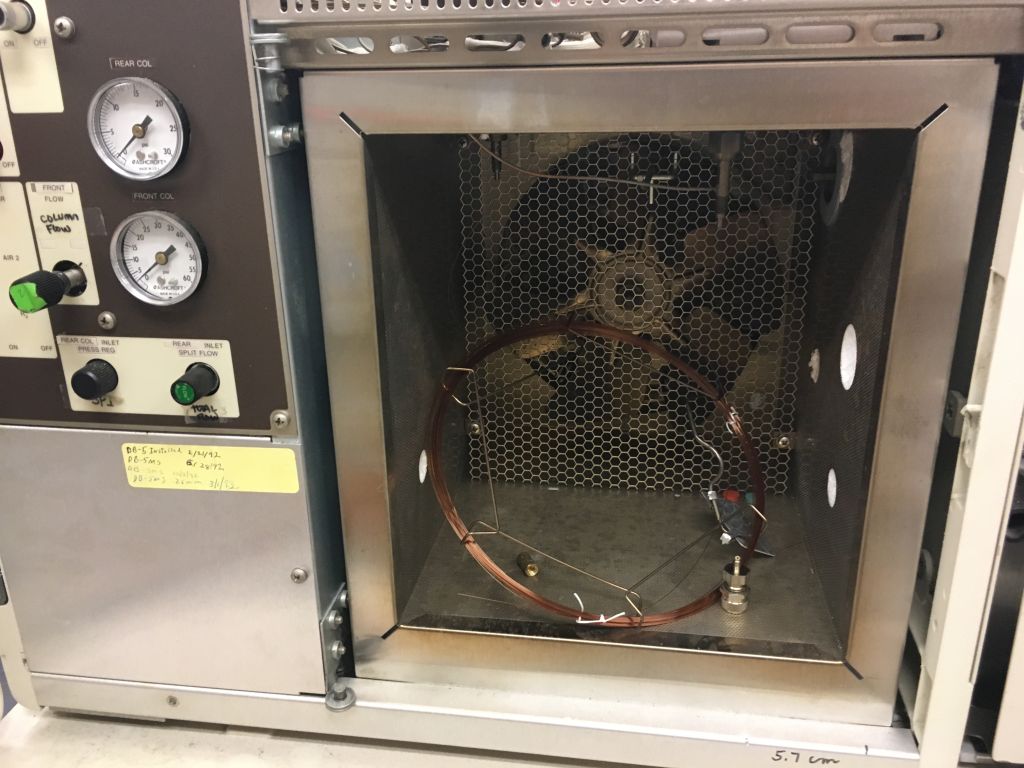

IMG_3149a - Lab Varian Saturn GC/MS, GC Oven, Column disconnected

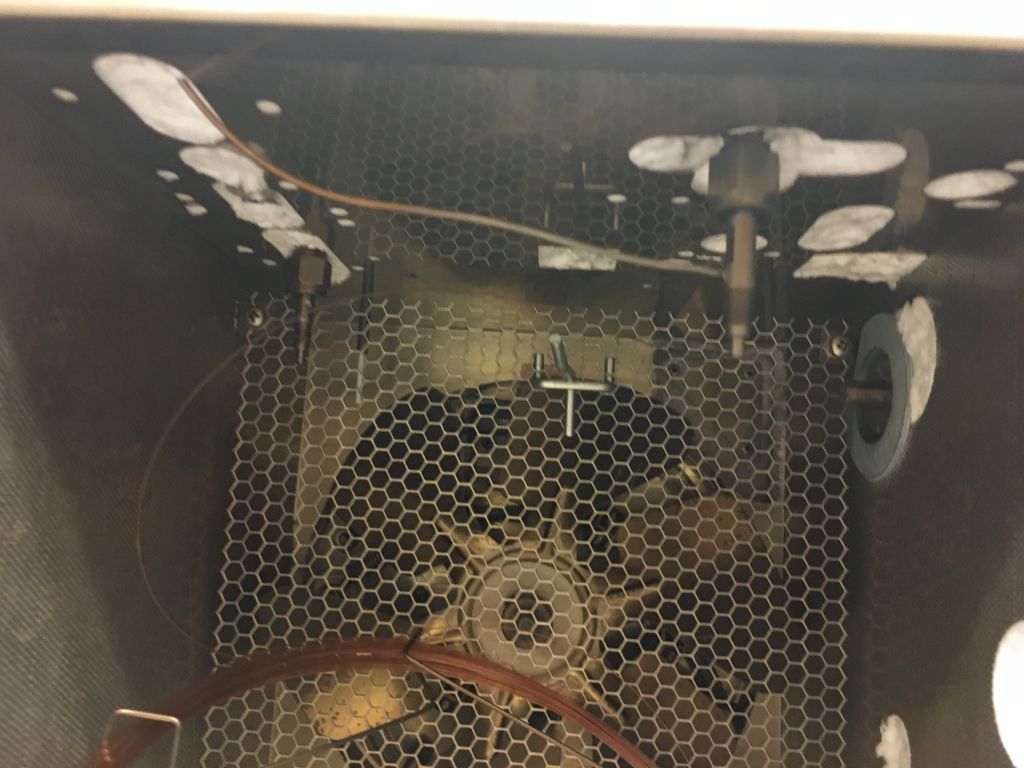

IMG_3150a - Lab Varian Saturn GC/MS, GC Oven Ceiling, MS Port on right wall

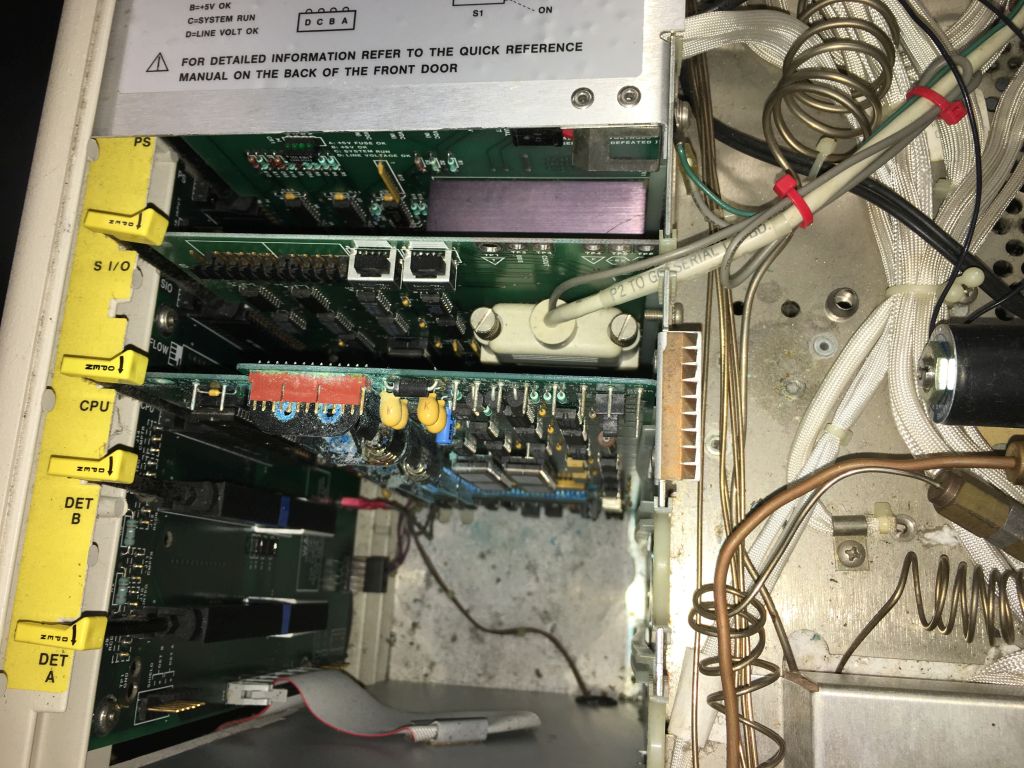

IMG_3139a - Lab Varian Saturn GC/MS, GC Boards on left

IMG_3115a - Lab Varian Saturn GC/MS, Right side of Mass Spec

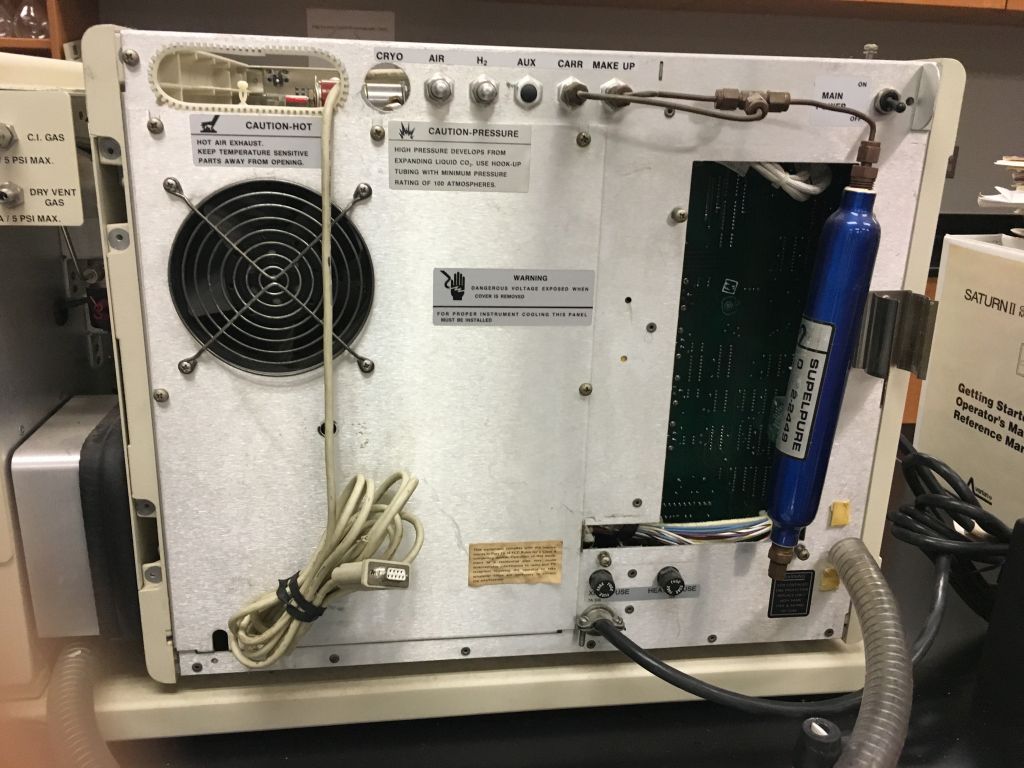

IMG_3116a - Lab Varian Saturn GC/MS, Back of GC

IMG_3117a - Lab Varian Saturn GC/MS, Back lower right of GC

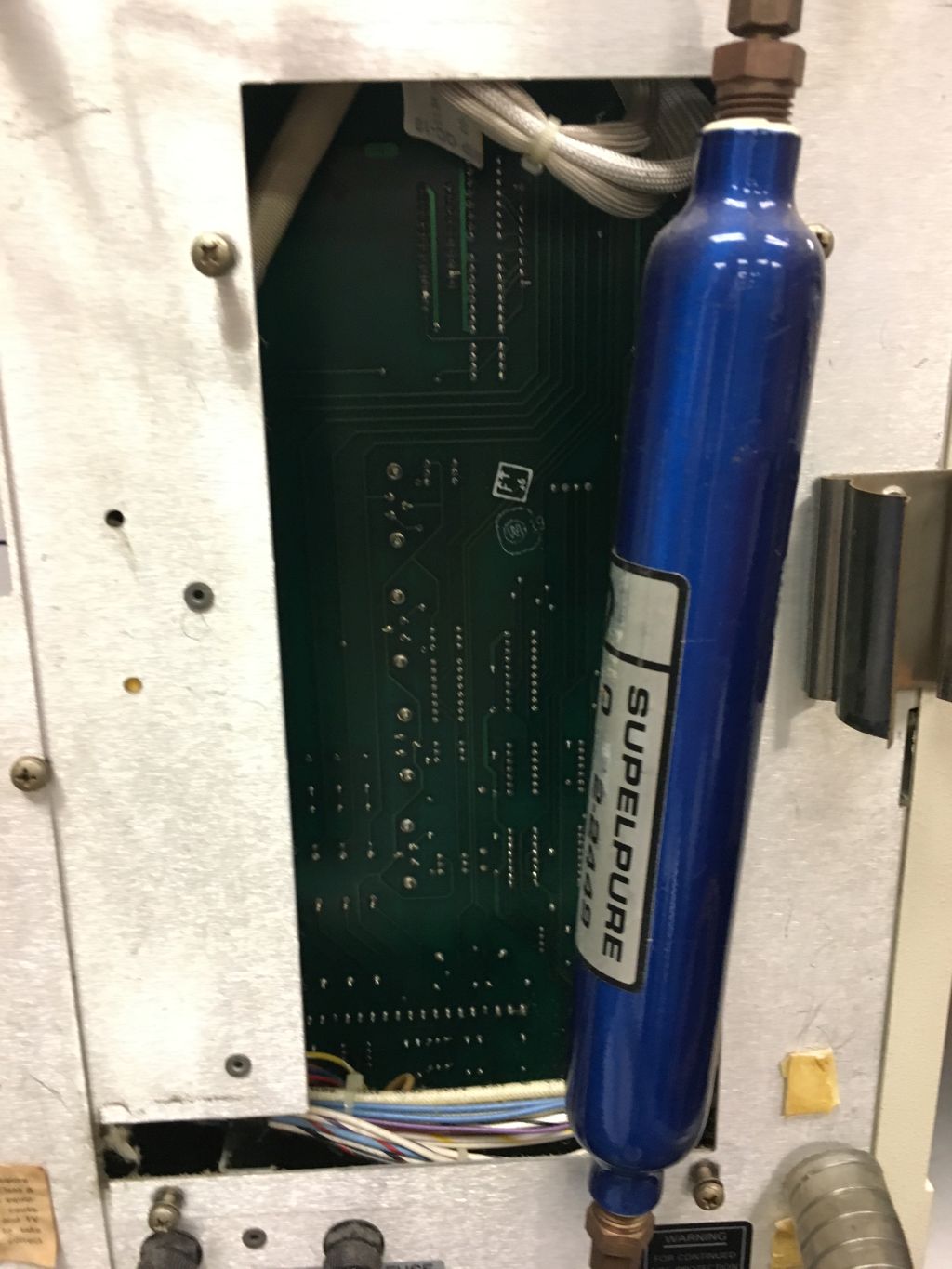

IMG_3118a - Lab Varian Saturn GC/MS, Back center right of GC

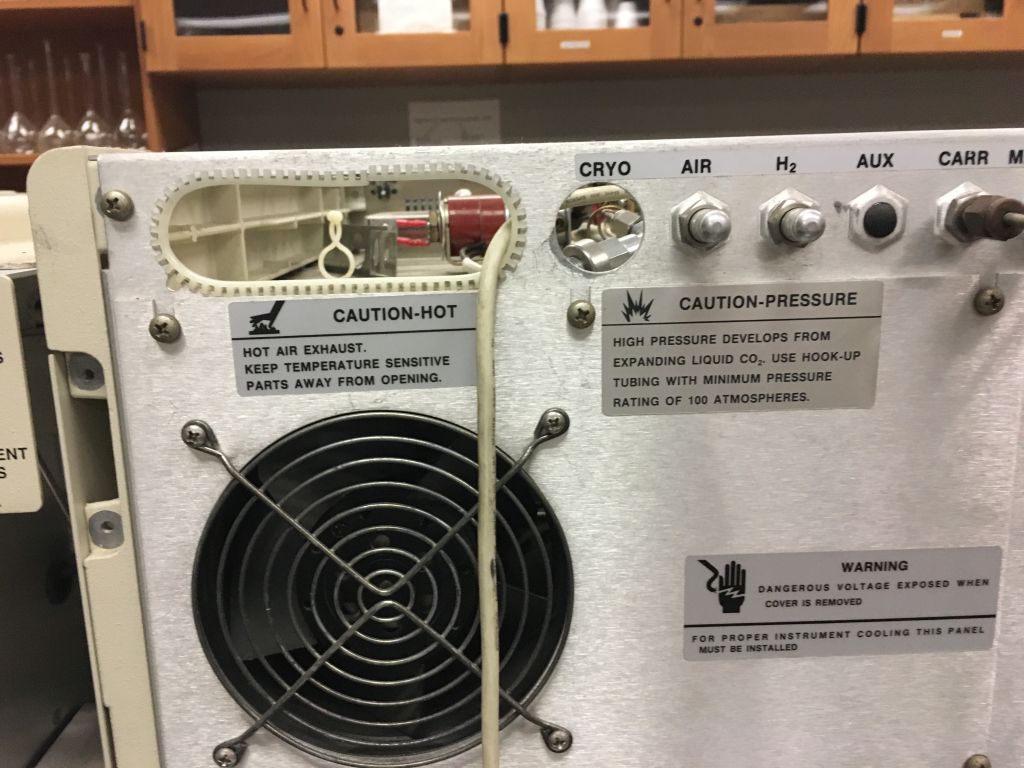

IMG_3119a - Lab Varian Saturn GC/MS, Back left top of GC

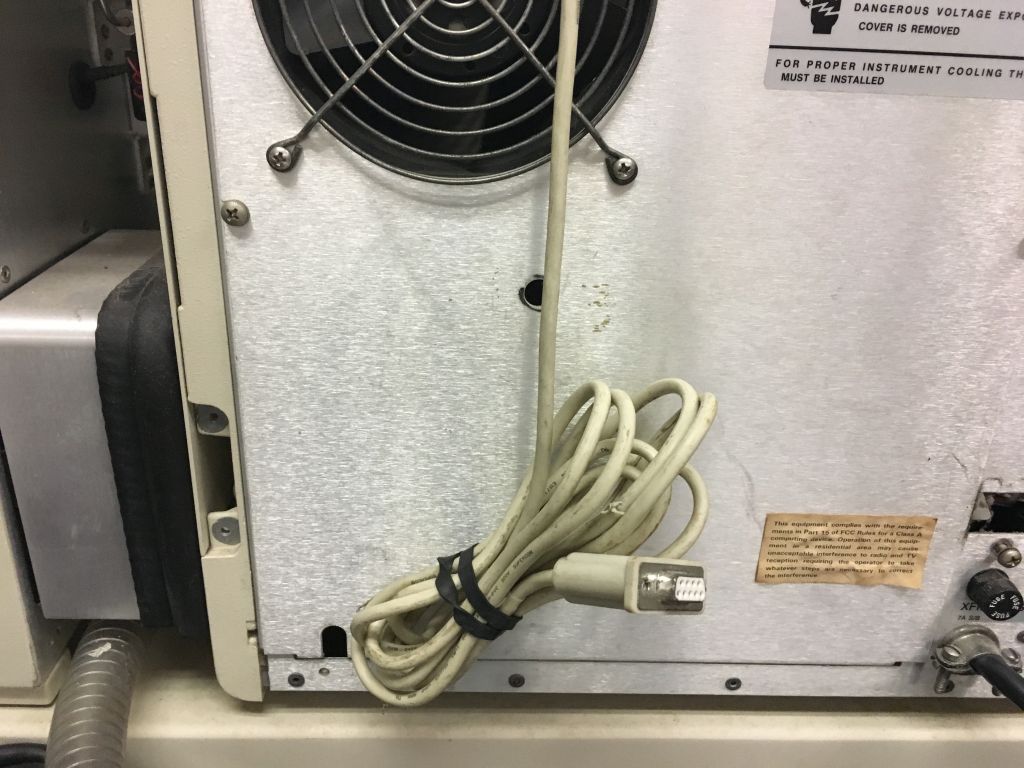

IMG_3120a - Lab Varian Saturn GC/MS, Back left bottom of GC. Cable is for what???

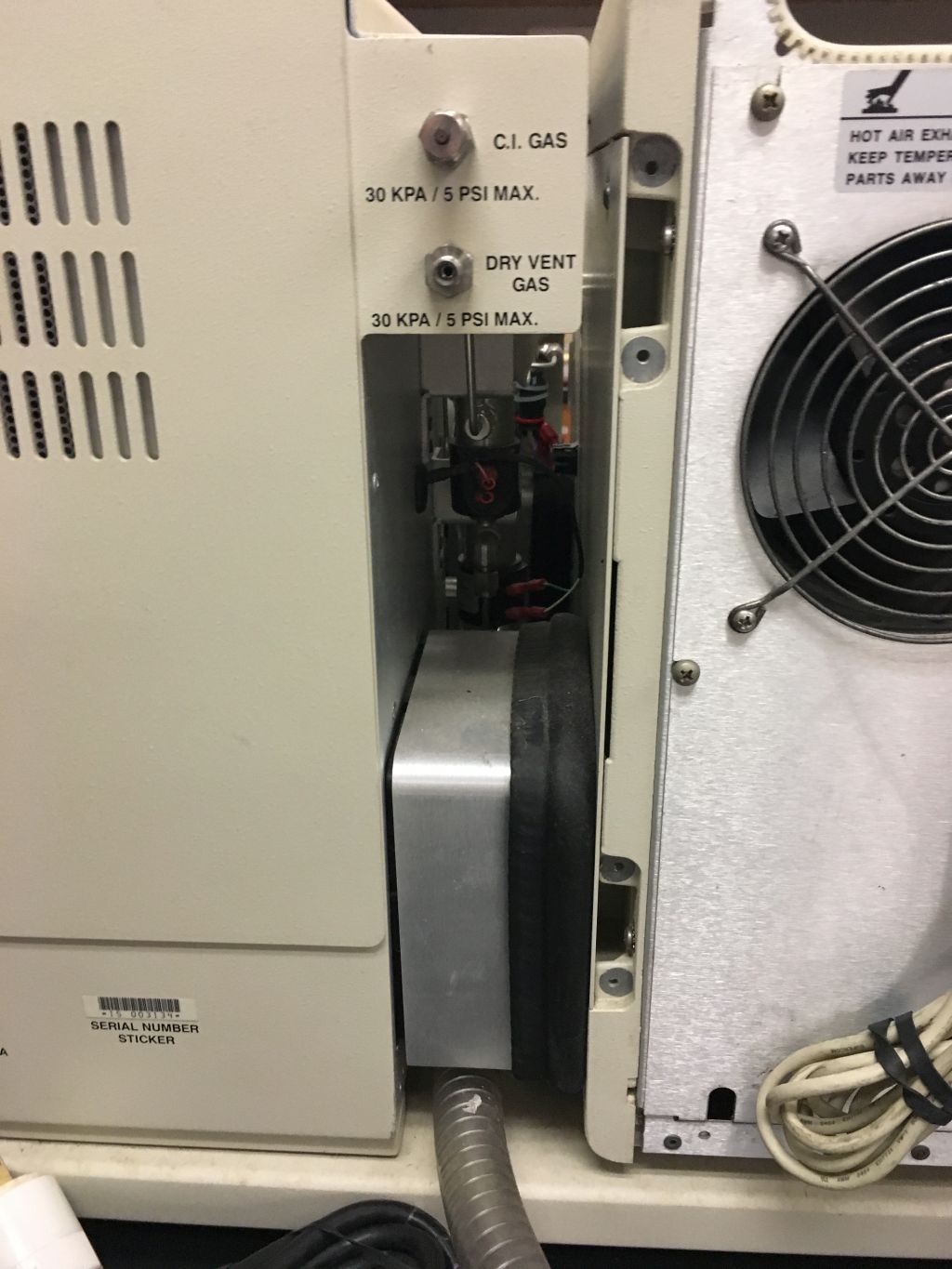

IMG_3121a - Lab Varian Saturn GC/MS, Split between GC right and Mass Spec Left

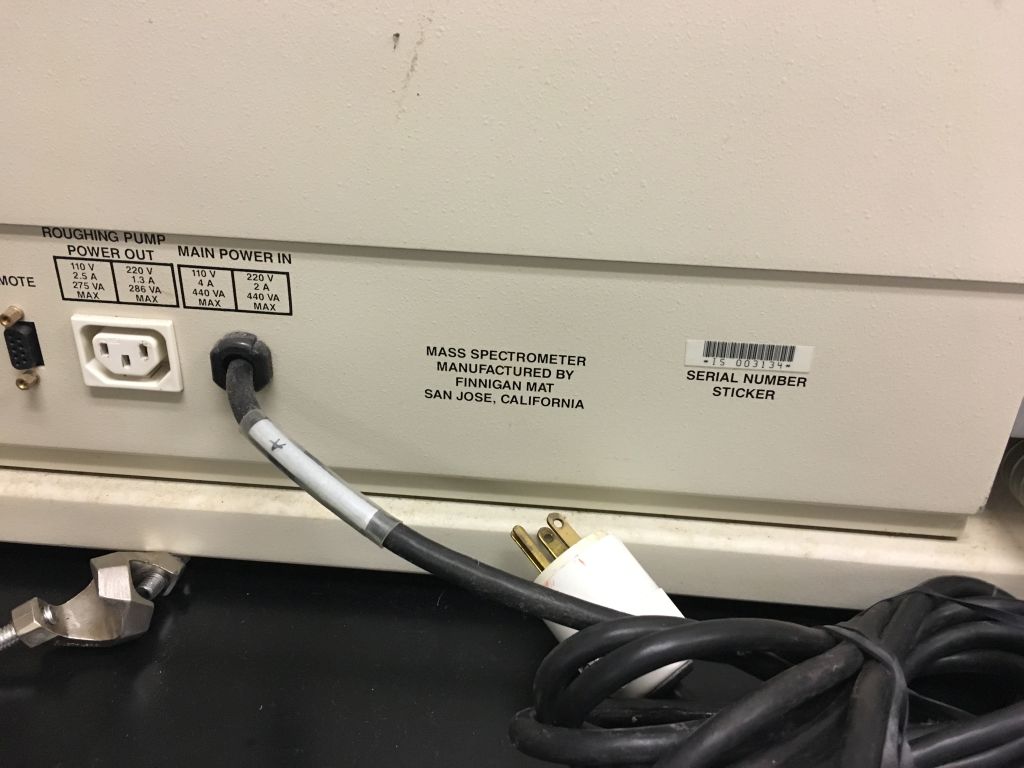

IMG_3122a.- Lab Varian Saturn GC/MS, Mass Spec lower right

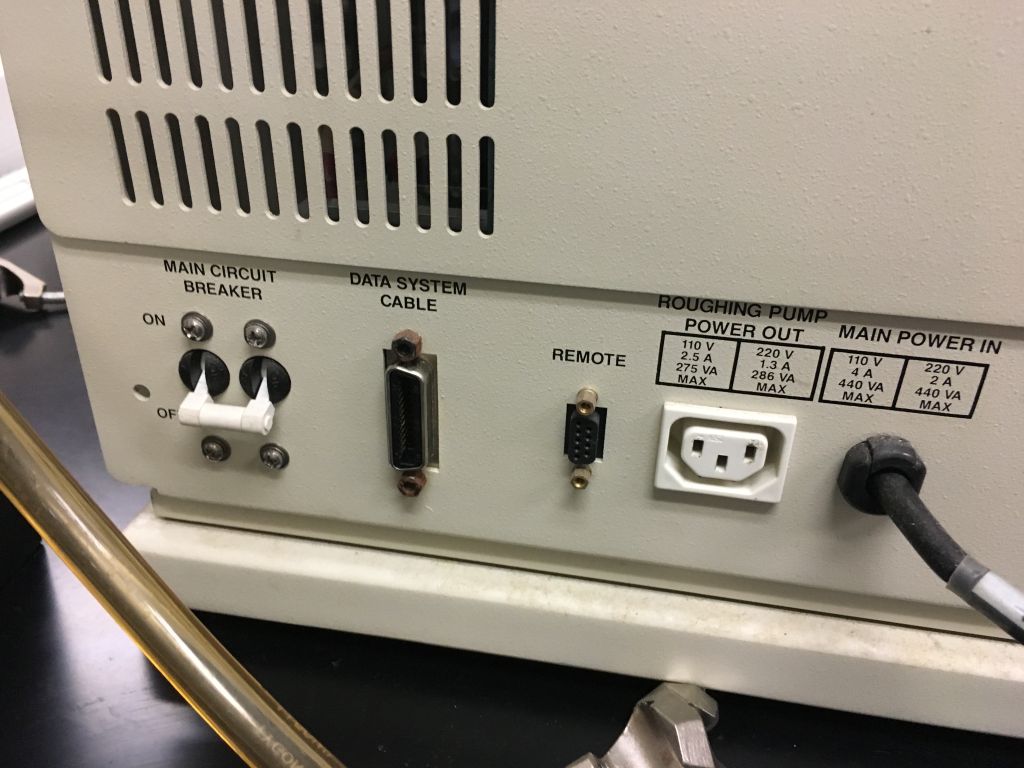

IMG_3123a - Lab Varian Saturn GC/MS, Mass Spec lower left

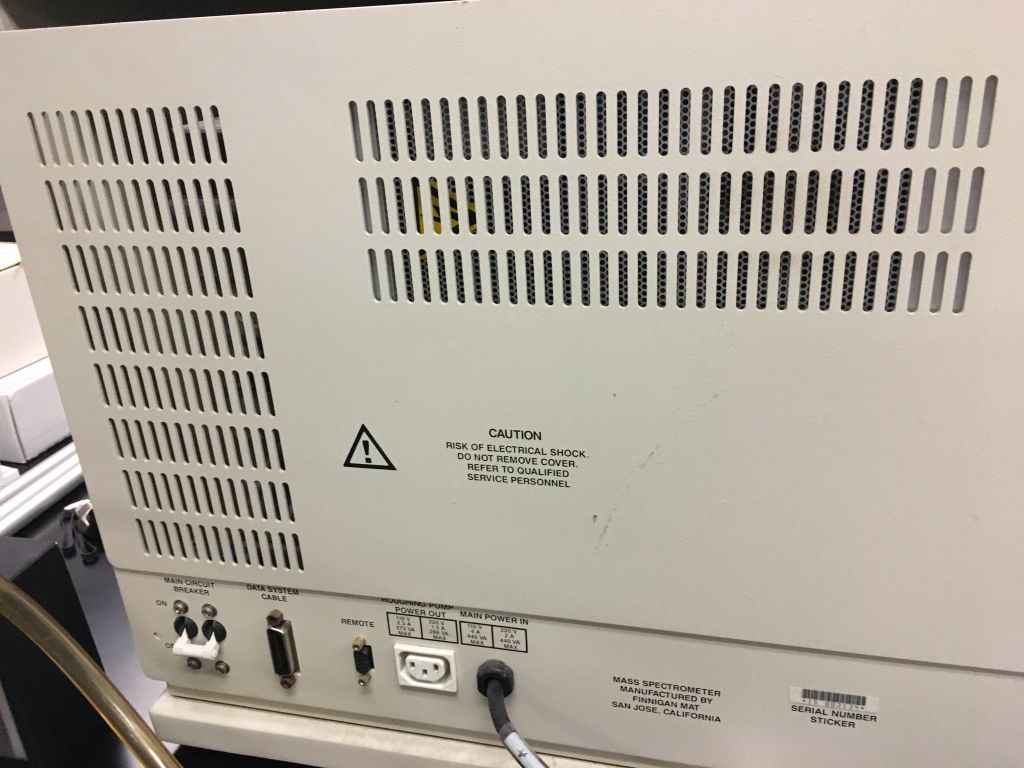

IMG_3124a - Lab Varian Saturn GC/MS, Mass Spec Back

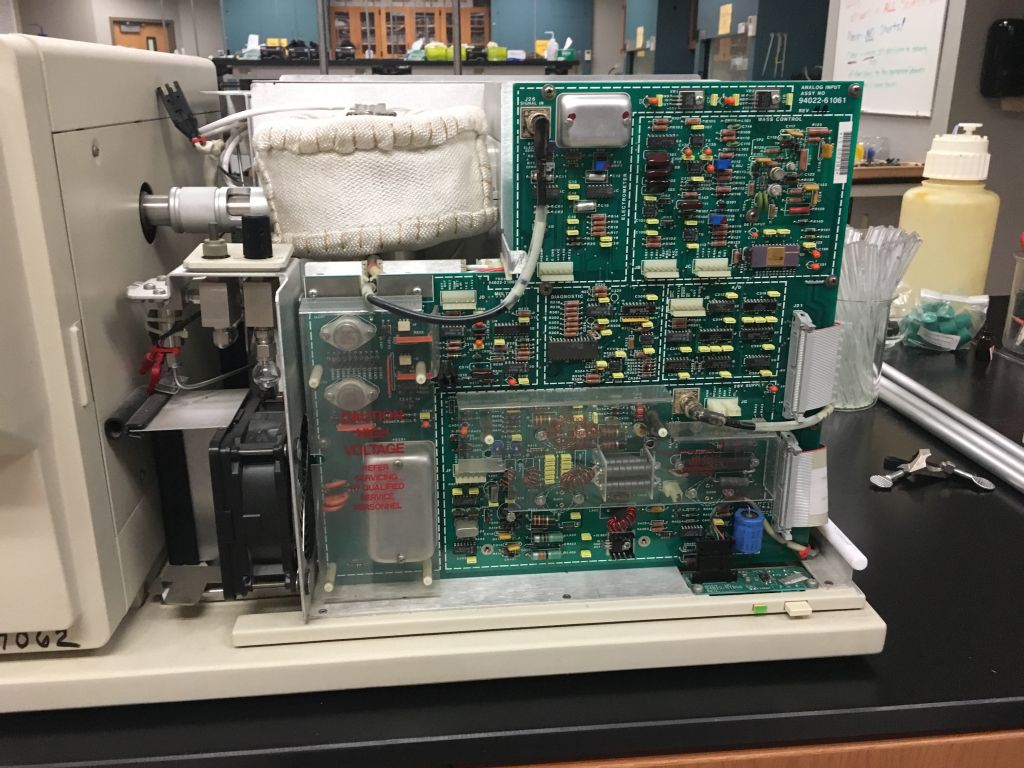

IMG_3125a - Lab Varian Saturn GC/MS, Mass Spec Front, no cover

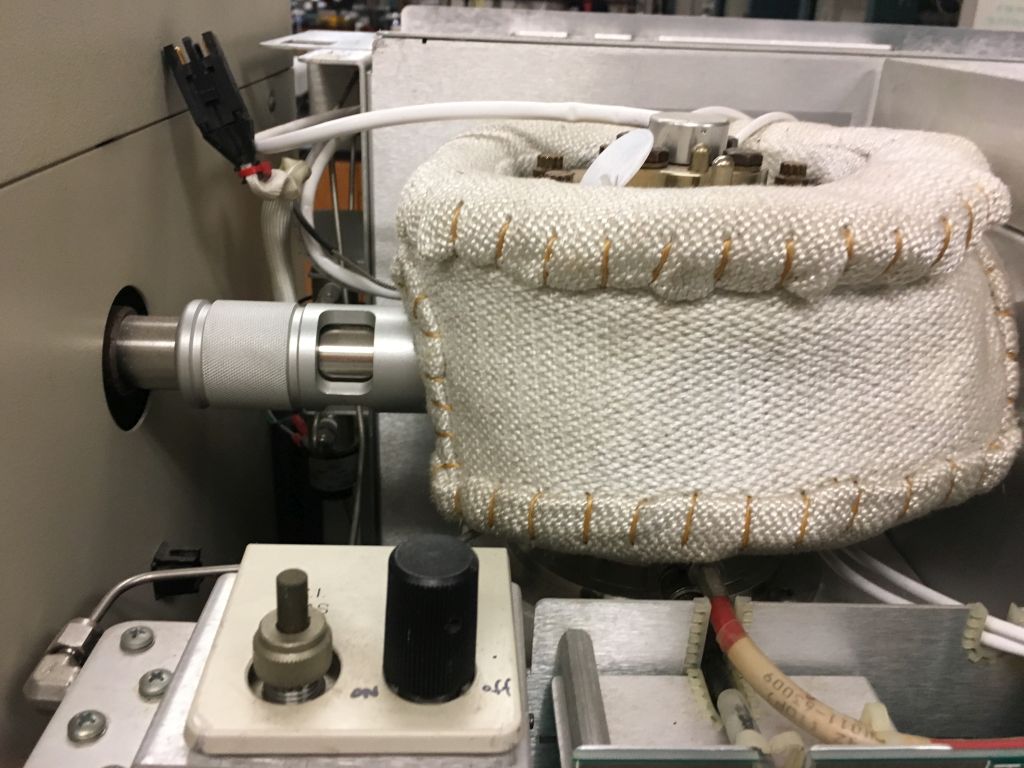

IMG_3126a - Lab Varian Saturn GC/MS, Mass Spec Front, pipe to GC (center left)

IMG_3127a - Lab Varian Saturn GC/MS, GC to MS Tube

Round bulb may be for calibration compound?

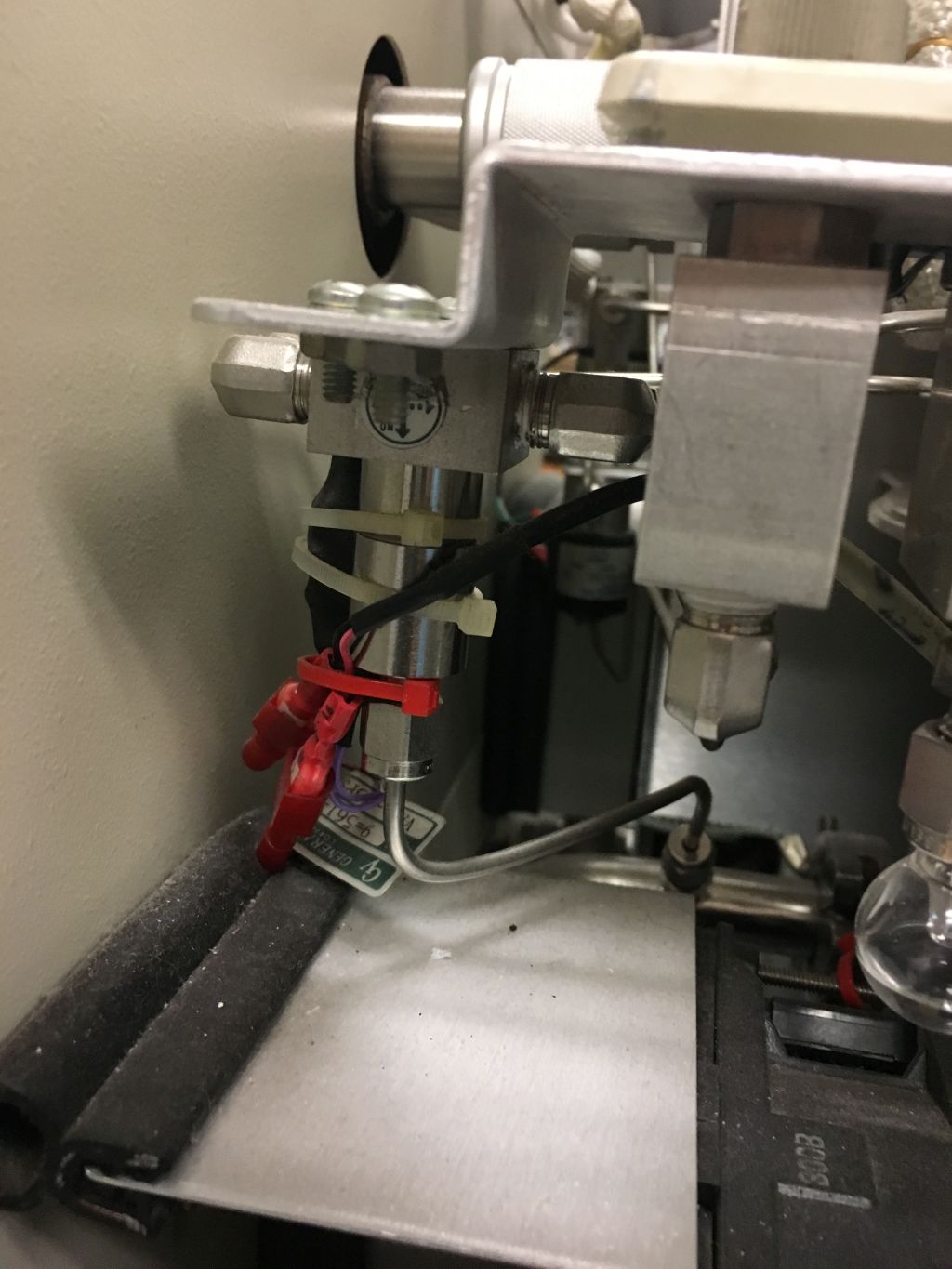

IMG_3128a.jpg - Lab Varian Saturn GC/MS, GC to MS Tube, looking ?

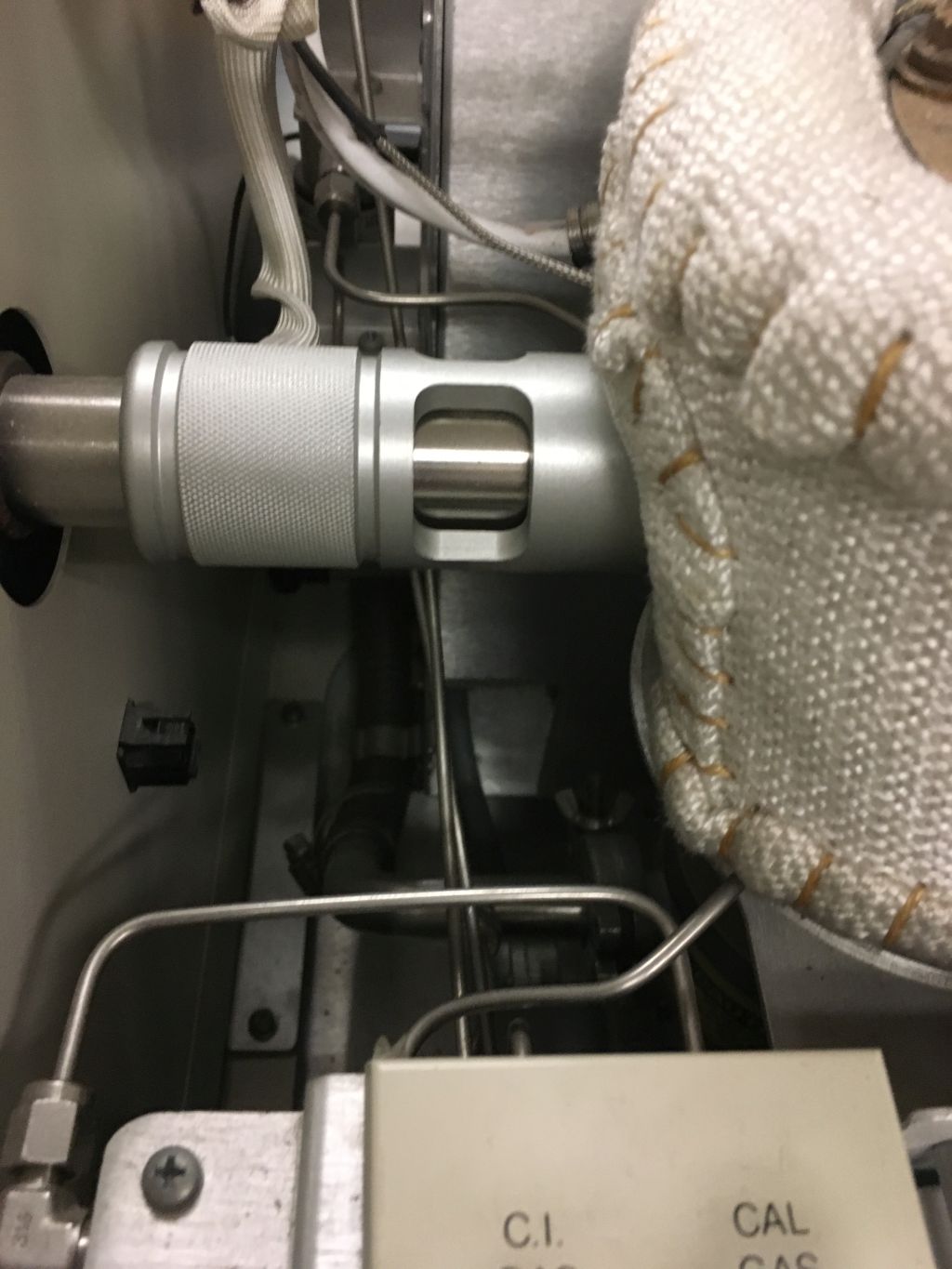

IMG_3129a - Lab Varian Saturn GC/MS, In front of GC to MS Tube

IMG_3130a - Lab Varian Saturn GC/MS, Mass Spec Left End Board

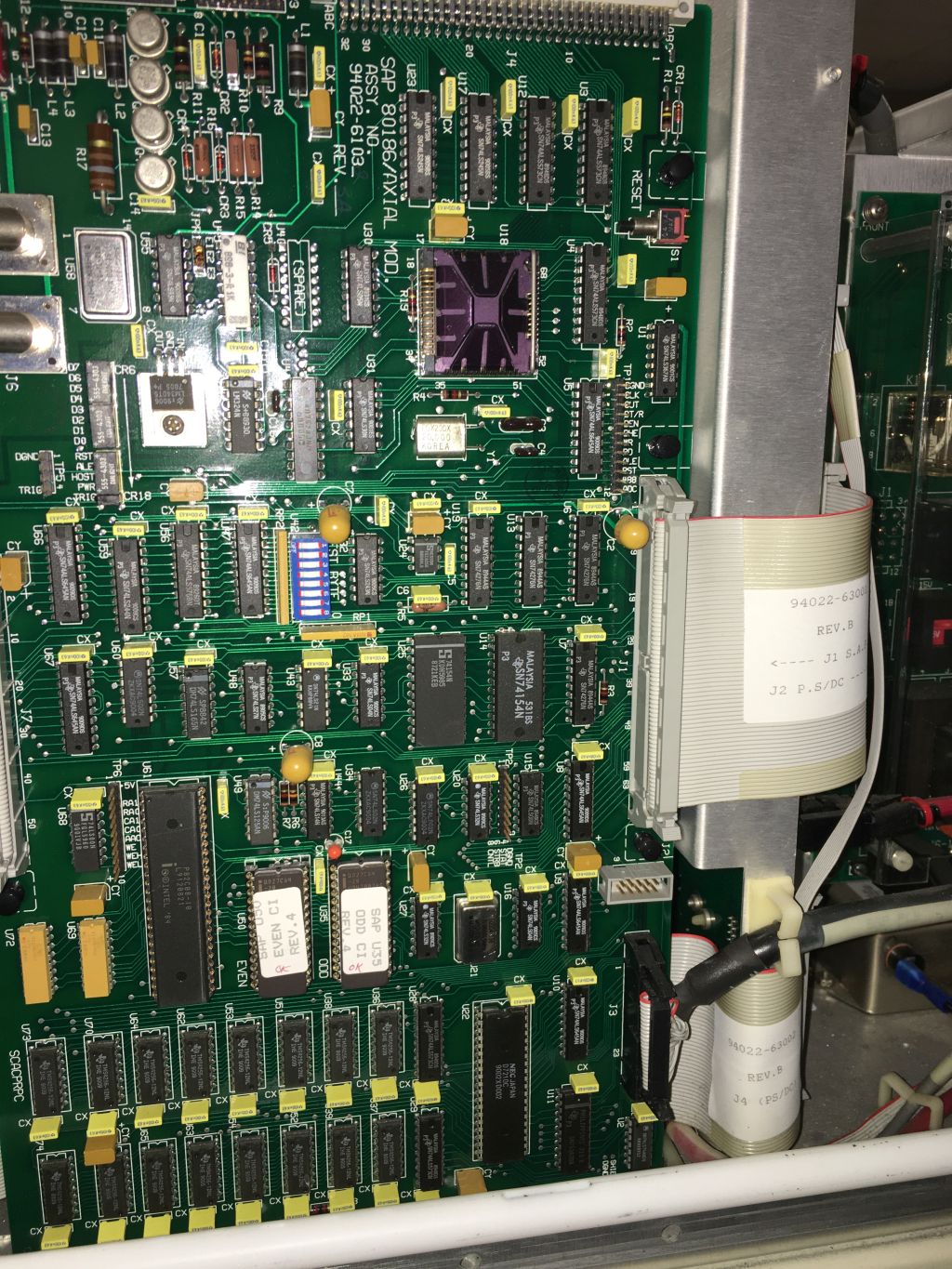

IMG_3134a - Lab Varian Saturn GC/MS, Mass Spec End Board.

Black sq upper right may be the processor

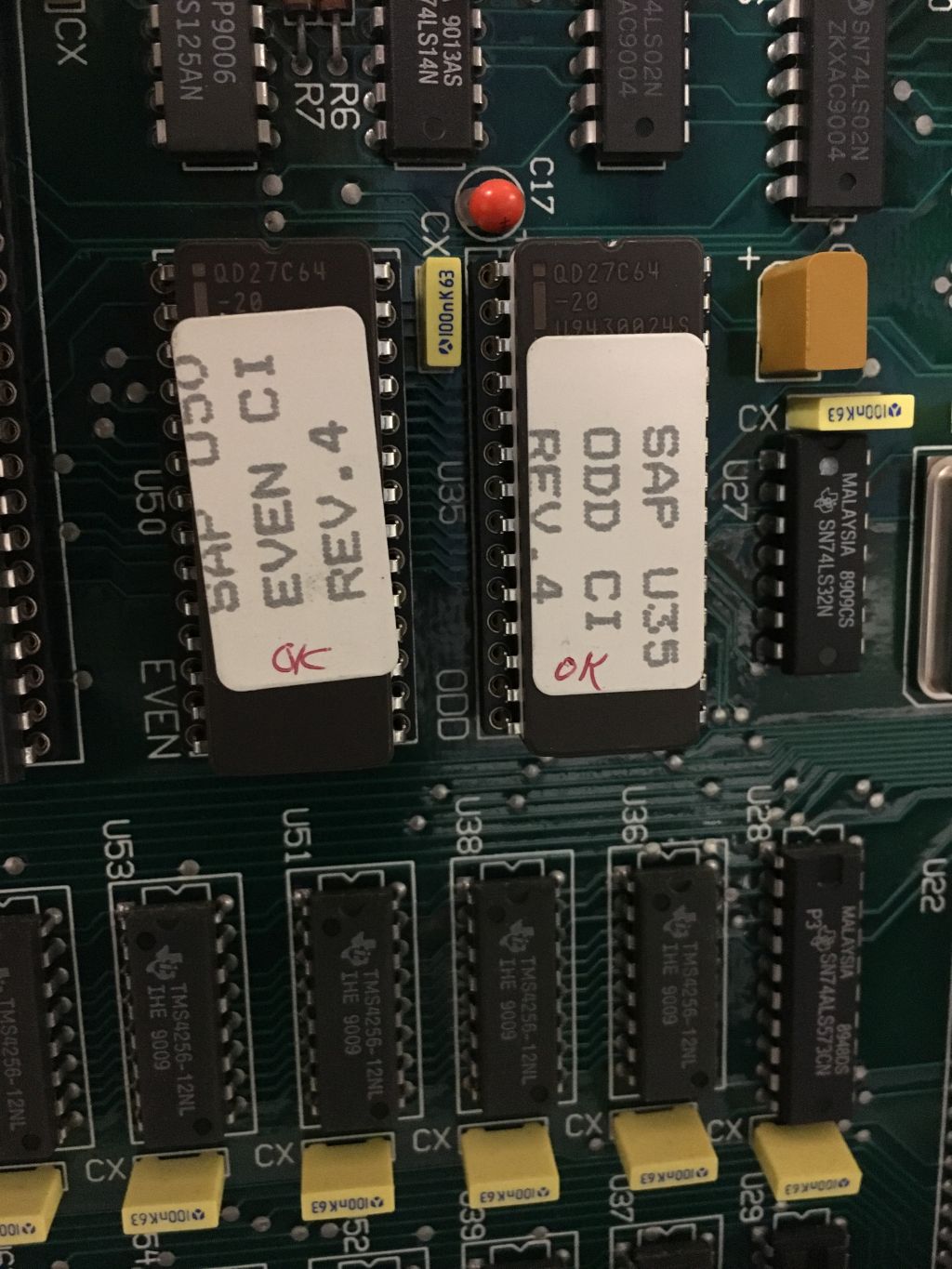

IMG_3131a - Lab Varian Saturn GC/MS, Mass Spec PROMs

IMG_3135a - Lab Varian Saturn GC/MS, Mass Spec End board, upper left

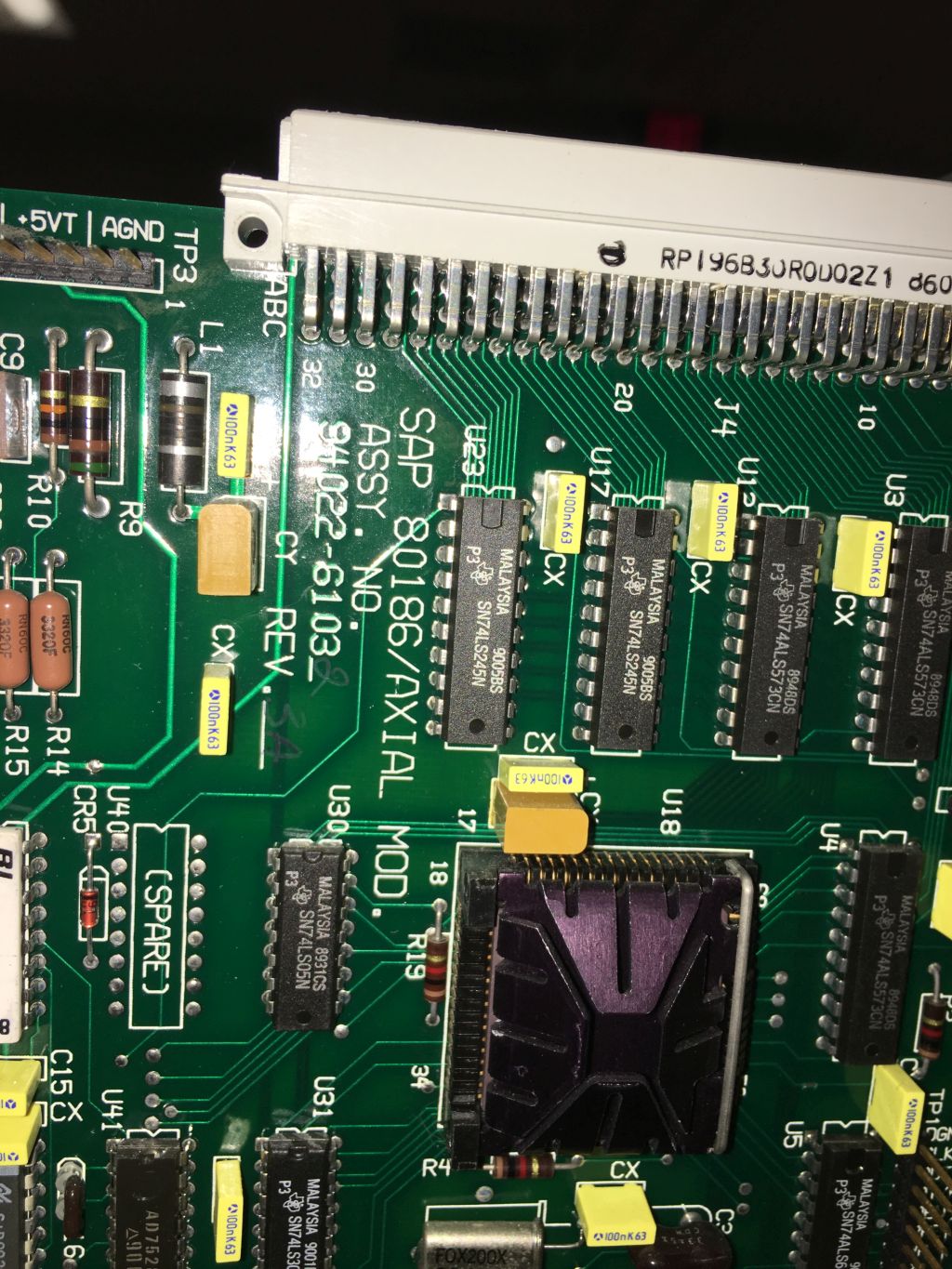

IMG_3136a - Lab Varian Saturn GC/MS, Mass Spec end board, upper right

U18 Black Square possible the computer?

IMG_3133a - Lab Varian Saturn GC/MS, Mass Spec Back looking down

IMG_3137a - Lab Varian Saturn GC/MS, Mass Spec back looking down

IMG_3140a - Lab Varian Saturn GC/MS, Mass Spec, top back looking down

IMG_3141a - Lab Varian Saturn GC/MS, Mass Spec from behind looking toward front, left side

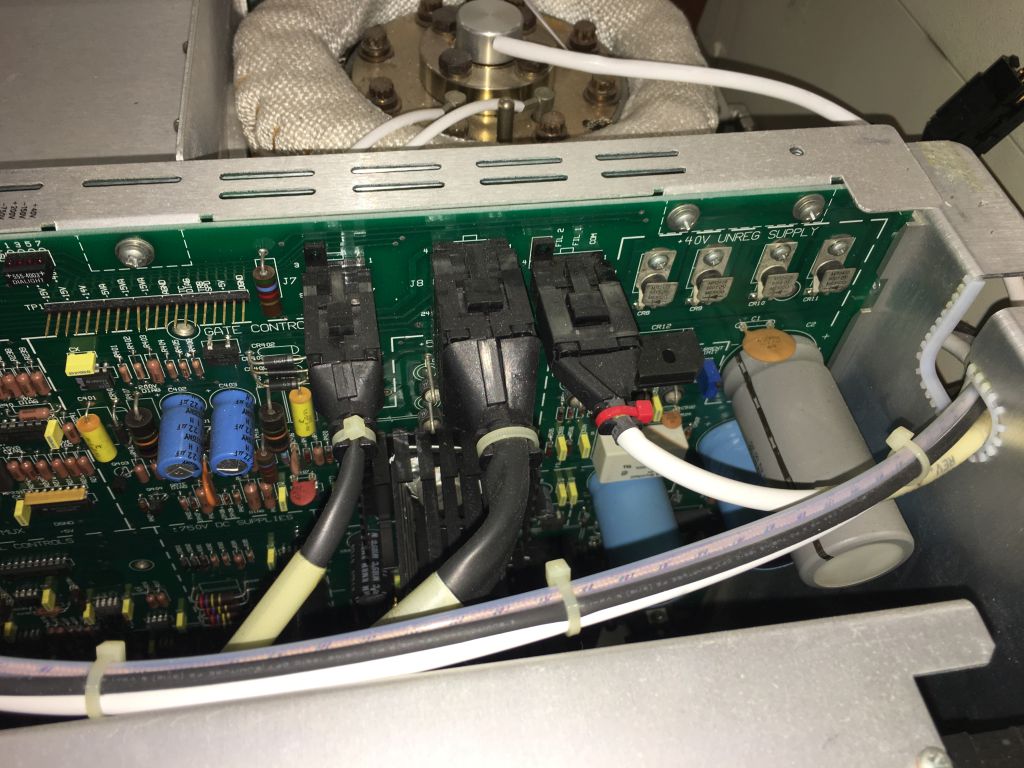

IMG_3142a - Lab Varian Saturn GC/MS, Mass Spec from behind looking toward front, right side

IMG_3143a - Lab Varian Saturn GC/MS, Mass Spec S/N

IMG_3144a - Lab Varian Saturn GC/MS, Mass Spec Power Warnings
